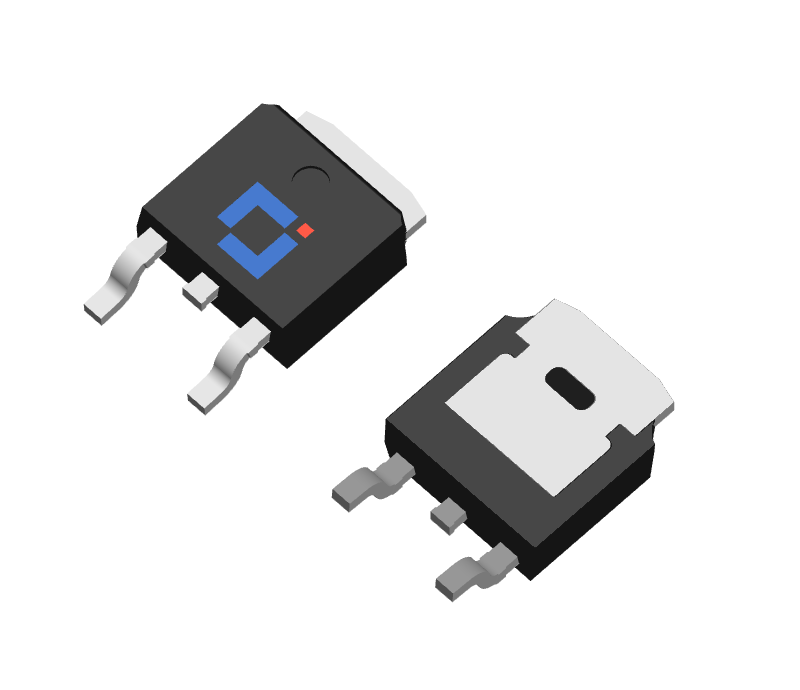

Nch 65V 75A, TO-252-2L, SGT MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJU6R8SN065AL | Active | No | 65 | ±20 | 75 | 1.2~2.5 | 5.5 | 6.8 | 7.5 | 9.8 | TO-252-2L |
| Part Number | Package Type | Marking | Packing Info | BOX | Carton | MSL |
|---|---|---|---|---|---|---|
| CJU6R8SN065AL | TO-252-2L | 6R8SN065AL | 2.5K/Reel;13 inch | 5K | 25K | MSL3 |
